AT4/TRAIL BOSS PLUS 2.0″ SST LIFT KIT- GM 1500 AT4/TRAIL BOSS 4WD 2019-2024

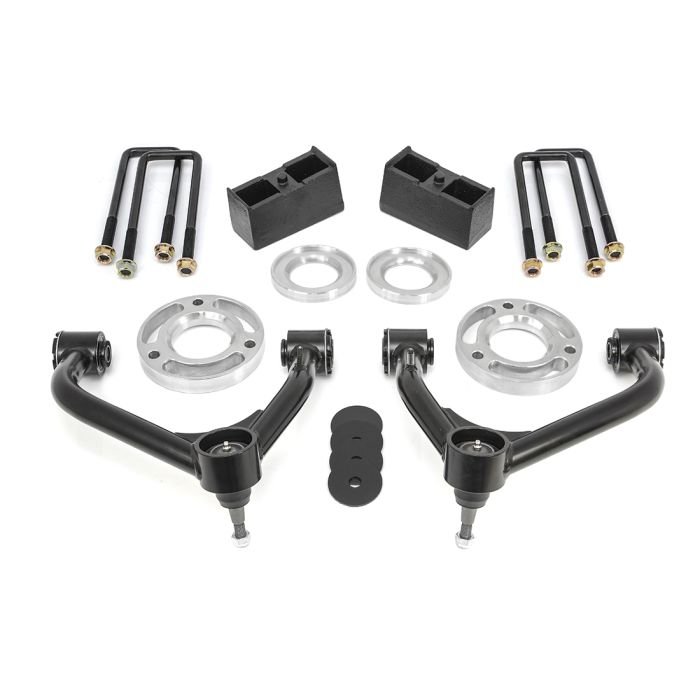

69-3920 +2″ SST Lift Kit: 2019-2023 GM AT4 & Trail Boss. Not compatible with Sierra AT4X or Silverado ZR2 Edition. 2″ front lift combines with factory 2″ lift. CNC-machined billet aluminum top spacer and pre-load spacer kit with heavy-duty control arms1-ton ball joints and maintenance-free pivot bushingsIncludes 3″ tall OE style cast iron rear lift blocks with new U-bolts AT4 – Max tire 305/55-20, 20×9 0 offset wheel Trail Boss – Max tire 295/65-20, 20×9 0 offset wheel Note: Not compatible with rear mono-leaf springs. Click here to learn how to determine if you have rear mono-leaf springs.
About
AutoWheelZone customers have asked for it and we have delivered. Last fall we announced our new leveling and SST lift kit offerings for the all-new GM 1500 trucks. We specifically did not include the factory lift kit-equipped GMC AT4 and Chevy Silverado Trail Boss. The AT4/Trail Boss are factory equipped with a 2″ front lift. This front lift includes a longer front shock/strut assembly. When combining a traditional leveling kit on these factory lifted trucks, several issues present themselves including binding problems with the factory control arm ball joint and contact concerns with the lower strut/CV axle assembly. The 69-3920 SST Lift Kit works with the factory 2″ front lift. This kit includes a top mount strut spacer along with a pre-load spacer to limit droop and the same premium grade upper control arms now available in our 66-3921 leveling kit. OE style 3″ tall cast iron rear lift blocks and rear bump stop extension cups are also included to create a true AT4/Trail Boss-specific bolt-on lift kit that provides 2″ of front lift and 1″ of rear lift. This new lift kit concept is similar to our successful TRD Pro Plus 2 SST Lift Kit which is also engineered specifically to work with that factory OE suspension lift. Your trust in AutoWheelZone to provide high-quality, precision engineered products is extremely important to us. You can be assured that this all-new SST lift kits are the absolutely most reliable and best performing suspension upgrade option for the AT4/Trail Boss trucks. AT4 – Max tire 305/55-20, 20×9 0 offset wheel Trail Boss – Max tire 295/65-20, 20×9 0 offset wheel NOTE: Use of Auto 4 HI feature not recommended.. NOTE: This GM 1500 kit is NOT COMPATIBLE with vehicles equipped with rear composite mono-leaf springs. The mono-leaf is easily identifiable the U-bolt is round/circular around the top of the leaf spring. This kit only works with vehicle equipped with traditional steel leaf springs identified by square U-bolts. NOTE: Not compatible with Sierra AT4X or Silverado ZR2 Edition.
Related products
-

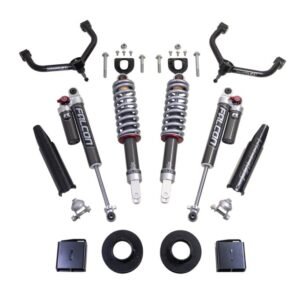

Includes DOM tube steel front upper control arms. Terrain Control Technology (TCT) maintenance-free pivot bushings. Includes HD ball joint for better durability. Heavy-duty fabricated steel rear coil spring spacers. Allows 35X12.50 tire on a 20×9 wheel with 0 offset. Vehicle-specific performance-tuned Falcon 2.1 monotube dampers on all four corners. Improved dynamic roll control and low-speed damping. Dramatic improvement in on-road comfort and off-road performance. Optimized fitment for unobstructed suspension travel and articulation. 6061-T6 aluminum alloy shock body resists Impact to protect internal components. Smooth-honed internal shock body surface for long-term performance. 3/4” induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling. Large shaft diameter provides a wide range of adjustments on adjustable shocks. Hard anodized 6061-T6 aluminum alloy billet piston. NOTE: Vehicles that are pre-lifted/leveled or that have the “off-road package” may net a smaller overall lift height ( ie 2.5” lift vs 3.5” on a non-factory lifted vehicle). Check factory height prior to installing. ** Not for use on trucks that are equipped with factory air suspension. Will not fit Ram TRX models.
-

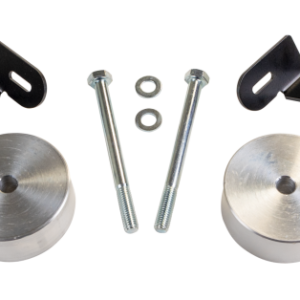

– Fits 2023-UP Ford Super Duty Trucks equipped with onboard scales.- PN 67-23210 works with AutoWheelZone kits of 2.5” lifts.- Relocates auto-leveling headlight sensors for improved tire clearance.Note: Auto-Leveling Headlight brackets only work with Super Duty stock radius arms. Read full instructions to set the headlight position before completing installation.
-
