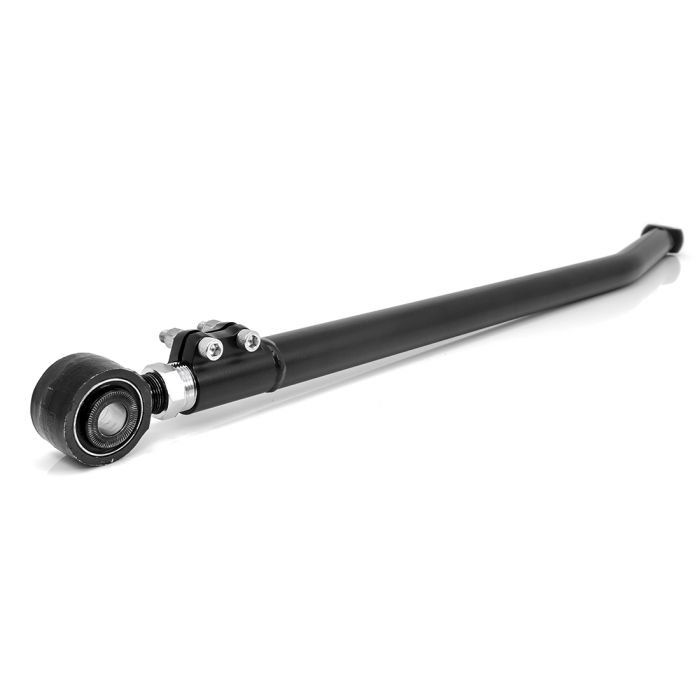

ANTI-WOBBLE TRACK BAR – FORD SUPER DUTY 4WD FOR 0-5″ LIFT APPLICATIONS 2005-2016
NEW Heavy Duty Anti-Wobble Track Bar For 2005-16 Super Duty F250/F350/F450 4WD Trucks with 0″ to 5″ of Front Lift Made in USA 1.5″ 3/8″-wall DOM tube steel with CNC machined 4140 ends Twin-pinch adjuster for on-truck adjustments Strongest Solution on the market!
About
AutoWheelZone has developed a new and improved adjustable heavy-duty front track bars for the 2005=2016 Ford Super Duty 4WD Trucks with 0 to 5 inches of front lift. Our all-new 77-2005 (2005-2016) Super Duty track bar is extremely strong and provides a wide range of solutions to remedy many of the common issues with lifted or leveled F250/F350/F450 4WD trucks. The 77-2005 track bar is constructed from thick 1.5″-3/8-wall DOM tube steel with CNC-machined 4140 Chromoly ends. On the frame side of the bar we include a threaded forged housing with a maintenance-free heavy-duty bushing that screws into a twin-pinch on-truck adjuster. This design allows you to adjust either AutoWheelZone track bar to the desired length on the vehicle. The 77-2005 track bar for 2005-2016 Super Duty trucks has a CNC-machined 4140 tapered end to receive the factory ball joint. This exciting new front track bar is engineered to be a direct bolt-on replacement for Super Duty trucks with 0″-5″ of lift. For trucks with 6″-8″ of lift, these track bars will work when using a track bar relocation bracket which is found in our AutoWheelZone 6.5″ and 8″ lift kits.
Related products
-
Universal Rear Add-A-Leaf Spring Kit For Compact & Mid-Size Trucks Provides approximately 1.5 inches of rear lift Lift height variable by application. Universal application – some installation steps may require minor modifications or hardware replacement depending on the vehicle. Modifications may include drilling holes or trimming brackets. Additional hardware may include different bolts, washers, nuts, or longer U-bolts not included in this kit.
-
AutoWheelZone’s new Front Differential Drop Kit for the 2022-2024 Toyota Tundra. Tundra Drop Kit lowers the front differential to improve CV angles at full suspension droop. New mounting bushings replace the soft OE bushings to help limit differential movement under load. These brackets will endure the elements with their steel construction with a black powder coat finish for corrosion resistance. Drops front differential to provide better maximum operating angle for CV jointsPolyurethane bushings prevent differential movement under load100% Bolt-on with no cutting or welding CNC laser cut steel brackets
-

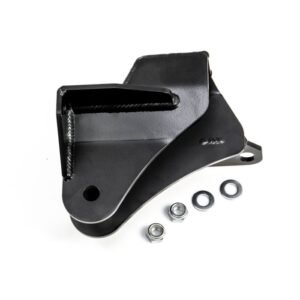

Track Bar Relocation Bracket for 4-6″ Lifts Ideal for use with 5″ Lifts Heavy Duty Plate Steel Construction Positions track bar for correct geometry and eliminates axle swing during articulation.
-
