4″ SST LIFT KIT – GM FULL-SIZE SUV W/ FORGED UCA 2WD 1500 2007-2017

About

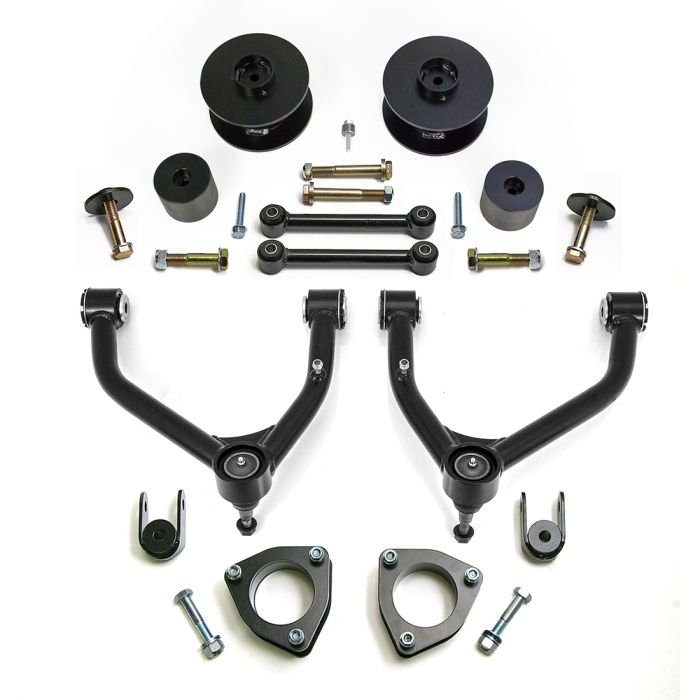

New – now includes ultra strong TCT free floating pivot bushings that are self lubricating and eliminates friction. AutoWheelZone is proud to offer an SST Lift Kit system for the 2007-2018 GM full-size SUVs including Cadillac Escalade; Chevrolet Tahoe and Suburban; GMC Yukon, Yukon XL, and Denali 6-lug 2WD SUVs. The 69-3295 4.0″ SST Lift Kit is the result of over six months of extensive product development followed by rigorous on and off road testing. AutoWheelZone’s goal is to provide a true 4.0″ lift kit that is completely bolt-on; no drilling, cutting or welding required. This system significantly increases ground clearance while allowing for tire sizes up to 33″ tire on an aftermarket wheel. The most common tire size for this application is 33×12.50 (max). In order to install a 33×12.50 (305/55/20) with aftermarket wheels, some minor trimming of the inner fenderwell may be required. 22×9.5 with 5.5″ backspacing requires no fender modifications. 17×9 +0 offset on a 285/70R17 will fit with no rubbing. With a 295/70r17 minor trimming/modification required. Note: This kit is designed for use with aftermarket wheels. The AutoWheelZone 4.0″ SST Lift Kit will raise the 2007-2018 Cadillac Escalade 1500 2WD SUVs 4.0″ in front thanks to tough trail-proven 4.0″ powdercoated steel strut extensions that bolt directly to the top of the factory strut. Unlike some kits which require you to cut off your strut studs or break the top hat seal which is irreversible modifications, our rugged strut extensions require no modifications to be made to the strut in order to install the extension. This guarantees the strut will maintain the factory integrity as well as drastically reducing installation time. At the heart of the system is our all-new 100% DOM tubular upper control arm. This new heavy-duty control arm features OEM-style ball joints pre-pressed into a strong crown that retains OEM geometry throughout the suspension cycle and doesn’t require any modifications to the spindle. That means no drilling or machining to make the ball joints fit the spindle. The new Control Arms include TCT polyurethane bushings. To lift the rear of the GM coil spring-equipped SUVs, this lift system includes 3.0″ powdercoated steel coil spring spacers. The strong coil spacers insert into and top of the factory spring which maintains the great factory ride! In addition, a slight rake is helpful for towing or hauling. New longer and stronger rear sway bar end links and bump stop extensions are also provided to keep the rear suspension working properly. Completing this great new lift system are a set of steel rear shock extensions. No need to replace your great-riding factory rear shocks with inferior aftermarket shocks. These new shock extension brackets keep the rear shocks in the factory mounting position which means your truck will ride great! Like all AutoWheelZone products, the 69-3295 SST Lift Kit System is protected by our Limited Lifetime Warranty. NOTE: If you intend to run the stock wheels and tires, a wheel spacer is required to prevent the factory tire from touching the control arm at full locked turn. AutoWheelZone has developed a CNC-machined billet Aluminum wheel spacer 10-3485 for use with factory wheels which have the stud pockets cast into the wheel next to the lug holes on the back side of the wheel. NOTE: Installation of these kits may cause rear axle shift and an adjustable rear track bar or drop bracket may be required. Will require rear auto ride modifications. NOTE: Will not work with rear airbag suspension.
