3″ SST LIFT KIT – TOYOTA TACOMA 2024

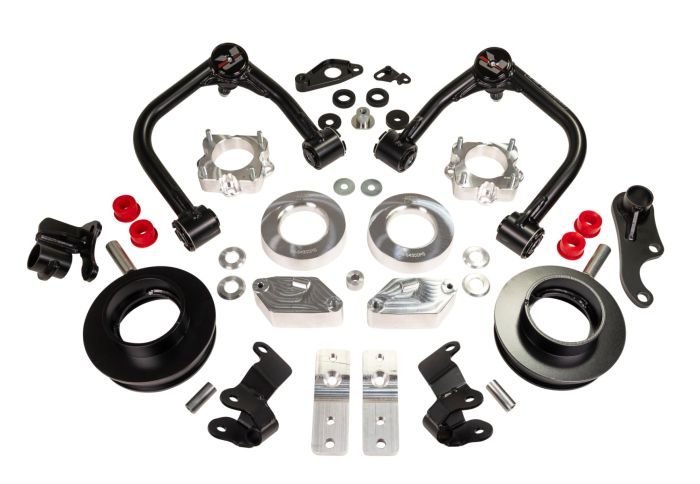

The all-new 69-54300 2024 Toyota Tacoma 3” SST lift kit is an excellent choice for those who want to run larger tires. The maximum size for use with this kit (without trimming) is a 285/75R17 on an 8” wide and +35 offset wheel.Features and Benefits:- Bolt-on installation – no modifications required.- 3” front lift with a 2” rear coil spring spacers.- Allows for up to 285/75R17 on an 8″ wide and +35 offset- Allows for up to 295/55R20 on an 8.5″ wide and +35 offset- Allows for 325/70R17 with minor trimming- Allows for 35×12.50 R17 with minor trimming- Includes strong tubular steel Upper Control Arms with market best heavy duty high angle proprietary ball joint.*Note: Kit does not fit Tacoma’s equipped with rear leaf springs.
About

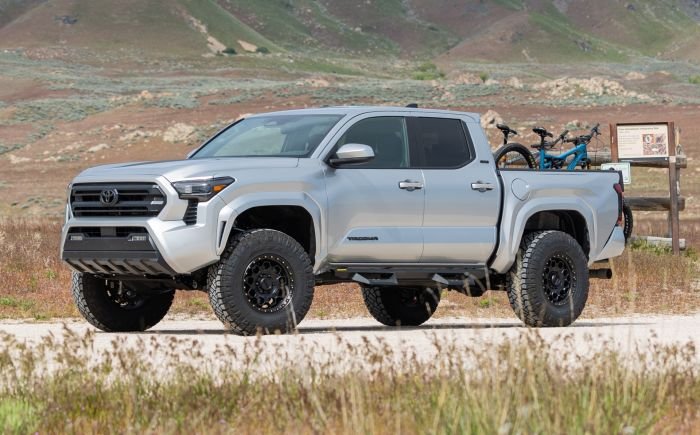

Toyota’s newest Tacoma has become a popular choice for new truck owners. As it was with the previous generation, many of the new 2024 Tacoma owners are asking for a quality bolt-on lift system that increases ground clearance and adds room for larger wheels and tires, all while maintaining the great factory ride and handling. Once again AutoWheelZone has delivered! The AutoWheelZone 69-54300 3” SST Lift Kit is exclusively engineered for the new 2024 Toyota Tacoma pickups equipped from the factory with rear coil springs. This new SST lift kit is a unique, second-generation version of our popular 3” SST lift kit for the previous model. Many of the same premium features found in that timeless Tacoma kit have migrated to the new 69-54300 lift kit, such as an updated version of our popular tubular upper control arms with corrected ball joint pivot angles. All-new billet aluminum front strut spacers and fabricated heavy-duty steel rear coil spring spacers give the 2024 Tacoma a nice, nearly level stance with 3” of lift. Rear shock extensions allow for the use of factory rear shocks. Precision-engineered differential drop components correct the critical CV angles and allow for over 3” of down travel; this keeps your tires on the ground while you’re out on the trail. The all-new 69-54300 2024 Toyota Tacoma 3” SST lift kit is an excellent choice for those who want to run larger tires. The maximum size for use with this kit (without trimming) is a 285/75R17 on an 8” wide and +35 offset wheel. Features and Benefits:- Bolt-on installation – no modifications required.- 3” front lift with a 2” rear coil spring spacers.- Allows for up to 285/75R17 on an 8″ wide and +35 offset- Allows for up to 295/55R20 on an 8.5″ wide and +35 offset- Allows for 325/70R17 with minor trimming- Allows for 35×12.50 R17 with minor trimming- Includes strong tubular steel Upper Control Arms with market best heavy duty high angle proprietary ball joint.*Note: Kit does not fit Tacoma’s equipped with rear leaf springs.
