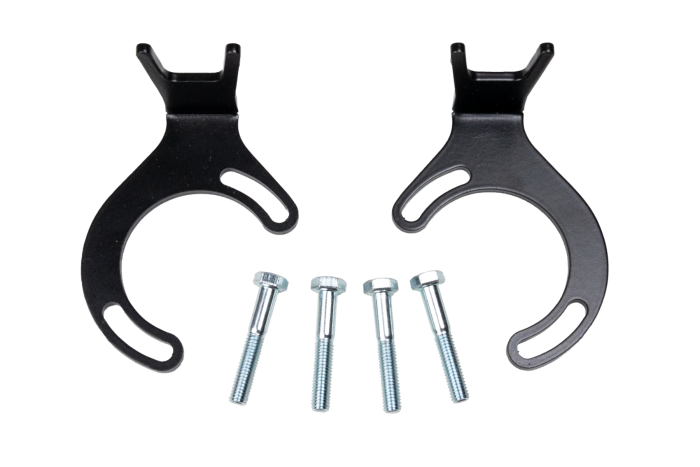

FORD SUPER DUTY AUTO-LEVELING HEADLIGHT BYPASS BRACKET KIT
– Fits 2023-UP Ford Super Duty Trucks equipped with onboard scales.- PN 67-23610 works with any AutoWheelZone lift kits. – Bypass auto headlight arm and locks headlights in place.- Designed to work with aftermarket Radius Arms
About
AutoWheelZone is excited to release new Auto-Leveling Headlight Brackets for the 2023-2024 Ford Super-Duty Trucks equipped with the onboard scale option. AutoWheelZone’s leveling and lift kits for the 2023+ Super-Duty trucks have been a huge success but trucks with the onboard scales need a solution to keep this function working properly without illuminating warning lights. These new brackets adjust the length and position of the front auto-leveling headlight sensor to the factory radius arms and a bypass bracket for AutoWheelZone’s Tubular Radius Arms. The new design moves the sensor towards the rear of the truck allowing for improved tire clearance along with adjusting the travel limits for proper function. Part number 67-23210 is designed to work with our leveling kits with a front lift up to 2.5,’’ the 67-23410 works on AutoWheelZone’s kits of 3.5” to 6” kits, and 67-23610 is our Bypass bracket for any lift height eliminating the bracket to the radius arms ideal for tubular radius arms.
