7″ COIL SPRING LIFT KIT WITH SST3000 SHOCKS – FORD SUPER DUTY DIESEL F-250 / F-350 4WD 2017-2022
Fits 2017-2022 Ford Super Duty Power Stroke 4WD7″ Coil Spring Lift Kit With (4) SST3000 ShocksBolt-on lift kit – no structural modifications requiredAllows for up to 38″ tall tires on 9″ wide wheels with 0 offsetDiesel trucks single-wheel only NOTE: Tremor versions will not gain the full 7 inches over stock ride height and will need longer U-bolts, see the note above. Not recommended for 2WD or gas trucks. 2017-2019 ride height may be slightly lower. Single Cab configuration has not been validated for fitment & drivability by AutoWheelZone.
About

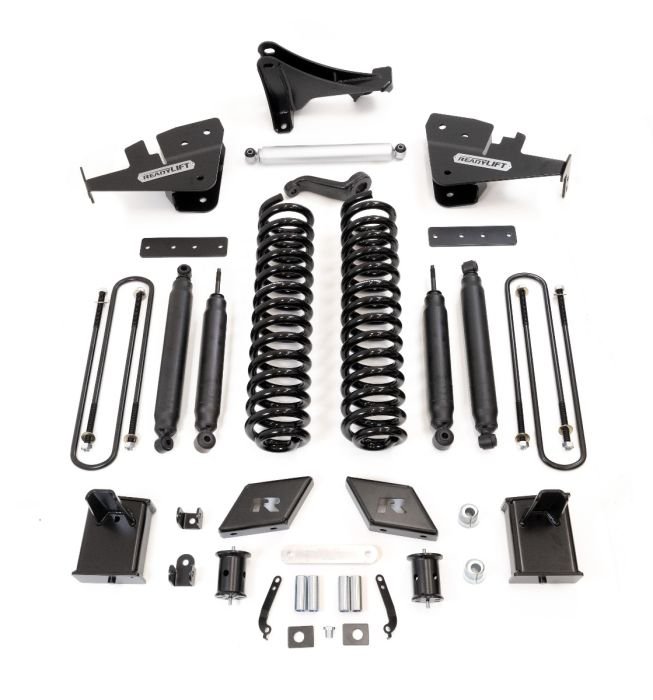

AutoWheelZone Suspension is now offering two new 7″ Coil Spring Lift Kits made to fit 2017-2022 Ford Super Duty F250/F350 4WD trucks. The 49-27700 includes our front and rear SST3000 performance shocks. The kit has our popular cast front track bar relocation bracket, heavy-duty radius arm drop brackets, and rear fabricated blocks with integrated bump stop tangs. This gives Super Duty owners an excellent alternative for lifting their trucks to fit larger tires. This new 7″ lift system will raise the 2020-2022 4WD Super Duty truck 7″ (2017-2019 SD 6.5″). The coil spring system allows for increased tire sizes and widths along with providing improved ground clearance on the street or trail. Super Duty customers will love the head-turning stance! This premiere big lift kit allows for up to 38″ tall tires. The AutoWheelZone 7″ Coil Spring Lift Kit system for 2017-2022 Ford Super Duty trucks also includes model-specific brake line extension brackets, our time-tested bump stop extension brackets, and new front sway bar frame mount extension brackets to keep the factory sway bar at the proper geometry. Super Duty wants rugged looks and a smooth but controlled ride, the new AutoWheelZone 7″ Coil Spring Suspension Kit System is the perfect solution.
