2″ LEVELING KIT – FORD RANGER 4WD 2019-2023
2019-2023 Ford Ranger 2.0″ front leveling kit Fits: 2WD & 4WD Ranger XL, XLT, Lariat, FX4, and Tremor Made in USA Top/Bottom strut spacers CNC machined aircraft-grade billet aluminum Common tire/wheel sizes: 18×9 +18 offset 265/60R18 18×9 +30 offset 265/65R18 20×9 +18 offset 275/55R20 20×9 +30 offset 275/55R20
About

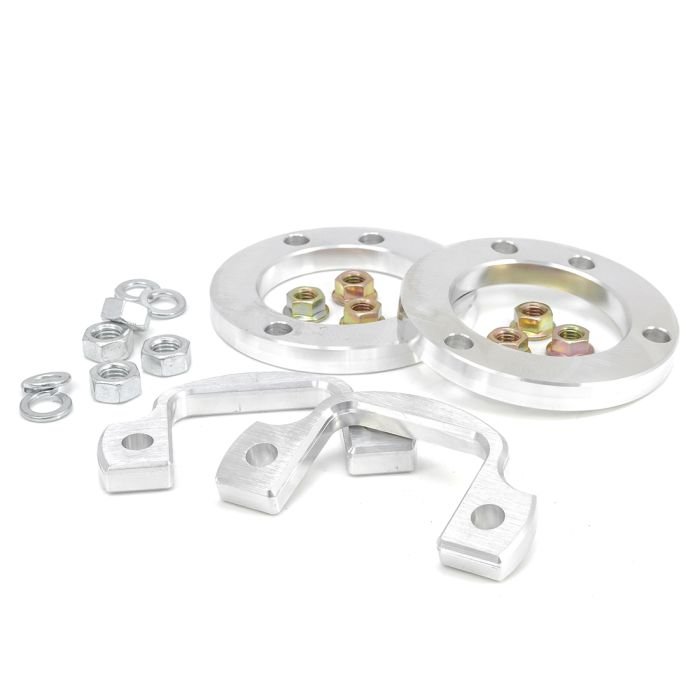

For the new Ranger owner who just wants to remove some of the exaggerated rake these trucks have from the factory, our new CNC-machined billet Aluminum 66-2920 2.0″ front leveling kit is perfect to help get the Ranger closer to level while allowing for an mild increase in tire size. This kit is incredibly easy to install and features our time-tested top/bottom strut mount spacers. Requires no cutting or modifications and installs easily in just a few hours. Kit includes 2 top and 2 lower strut extension spacers. The ideal choice for Ranger owners who want to raise the front of their new truck but want to retain some of the factory rake. Allows for 18×9 +18 or +30 offset 265/60R18 or 20×9 +18 or +30 offset 275/55R20 Fits both 2WD and 4WD. Want a taller front lift? Please check out 69-2930 and 66-2930 3″ kits. NOTE: Ranger Tremor Edition utilizes the front strut top spacer only to achieve level stance. NOTE: Not for use with Ranger Ford Performance Level 1, 2, or 3 Packages.
