2.5″ SST LIFT KIT – DODGE RAM 1500 4WD 2009-2024
2.5″ Lift Kit including new Tubular Upper Control Arms 2009-2024 DODGE RAM 1500 Classic 4WD SST LIFT KIT Solves OEM control arm ball joint issues. Max Tire: 35″ Not for use on truck with factory air suspension
About

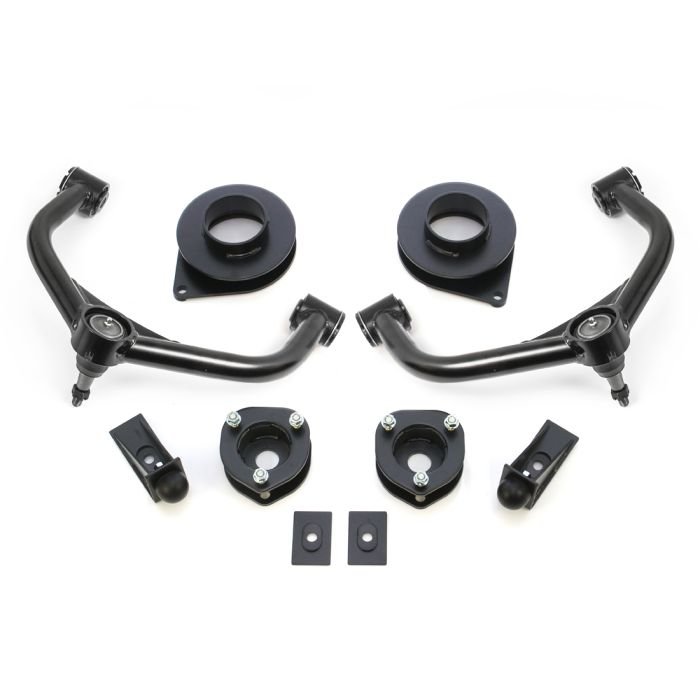

Lift your 2009-2024 Ram 1500 Classic 4WD 2.5″ in front and 1.5″ in the rear with our AutoWheelZone SST Lift Kit. This kit includes our new heavy-duty DOM tube steel upper control arms with corrected ball joint cup angles and heavy-duty ball joints. The same ball joints found in HD trucks! Fabricated steel top mount strut extensions provide 2.5″ of front lift while steel coil spring rear spacers provide 1.5″ of rear lift. This easy-to-install system also includes bump stop extensions and our new one-time grease control arm bushings. Allows for up to a 35×11.50 tire on a 9″ wheel with +12 offset for a no-rub situation. Requires no permanent modifications.
